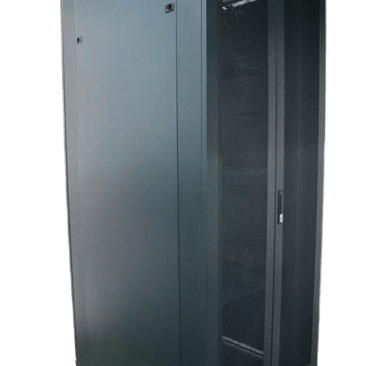

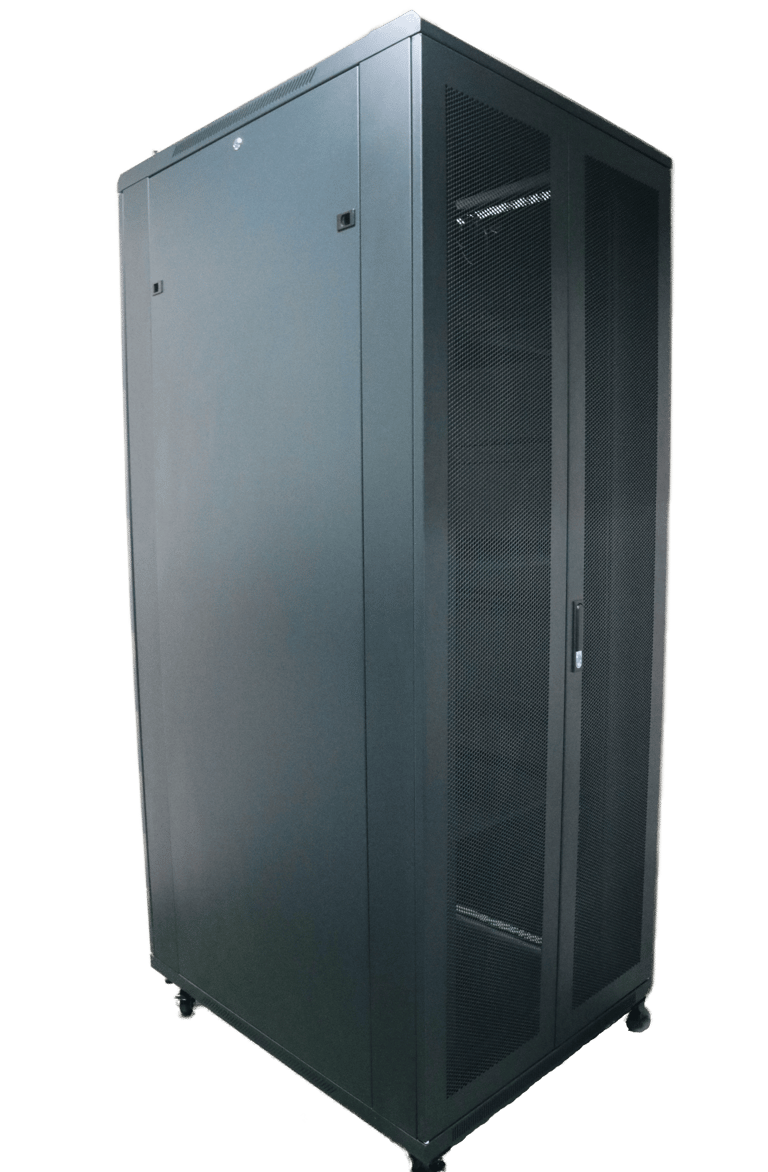

HardRack Data Cabinet

Description:

Configured-to-order, the HardRack data cabinet was designed to adapt to the needs of nearly any data center design and is ready to handle ever-growing cable and power densities. It features a variety of cable management options, excellent load ratings, and a structural design that maximizes usable internal space and airflow. The HardRack data cabinet is easy to customize, move/transport, maintain, and reconfigure, allowing for seamless deployment no matter the scale. With over a million possible configurations, it's redefining what a data center cabinet should be.

Applications:

• Traditional data centers, including enterprise, colocation/MTDC, and hyperscale.

• Rack-and-roll and rack-and-stack deployments.

• Enterprise networks.

• High-density deployments.

• Large-scale deployments.

Features:

• Configured-to-order with infinite potential. HardRack data cabinet offers configuration options to suit nearly any data center environment—millions of possible configurations.

• Recessed PDU mounting. HardRack data cabinet has dual PDU channels integrated into the frame's rear corners to address an industry-wide problem of PDUs interfering with 19" EIA spacing in 23.6” (600 mm) wide cabinets.

• Adaptable and adjustable PDU mounting. HardRack data cabinet's PDU mounting brackets are easily adjustable to accommodate most standard PDU heights and allow for toolless mounting.

• Low-profile frame design. HardRack data cabinet low-profile frame design maximizes internal usable space.

• Vertical cable management. Our finger-style vertical cable managers feature toolless installation and removal and are available in short or long-finger designs (distributed in 1U increments).

• Vertical cable manager upgrades. Our Pro options include a lashing panel to support cable bundles and relieve stress on cable terminations and a hinged cover to keep everything concealed.

• Horizontal cable management. The 31.5” (800 mm) wide cabinet features a front-to-rear cable trough providing a dedicated cable pathway through openings in the equipment mounting rails.

• Excellent load ratings. HardRack data cabinet features a static load rating of 4,000 lb (1,814 kg) and a dynamic (rolling) load rating of 3,000 lb (1,361 kg).

• Heavy-duty casters. HardRack data cabinet comes standard with four 2.5" heavy-duty casters providing easy transport when not on leveling feet.

• Efficient airflow management. 80% perforated doors, brush-sealed cable openings on the top panel, and an optional air dam kit ensure effective supply and exhaust air separation.

• Ships preassembled. All cabinets ship preassembled with any accessories already installed in customer-specified locations, eliminating issues of staggered component delivery, wasted packaging, and on-site assembly.

• Reversible doors. The front door features quick-release hinges. They can be configured and reconfigured to hinge on the left or right side.

• Choose your lock type. HardRack data cabinet’s swing handle door can be configured with keyed, combination, or electronic lock types.

• Clear markings for easy mounting. The mounting rails are clearly marked, and depth markings on the interior frame assist with positioning and aligning the equipment rails.

• Custom-engineered shock packaging is available. Third-party tested to meet ISTA 3E standards. Perfect for rack-and-roll deployments.
