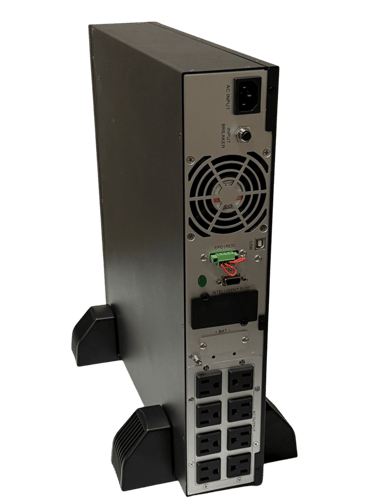

HardRack UPS

Rack and Tower Online UPS

Highlight Features

Key Highlight Features

• True Online Double Conversion Technology

• Zero transfer time (0ms) between line and battery mode

• Pure sine wave output

• Fully isolates load from power disturbances

• Protects against blackout, surge, fluctuation, frequency variation

High Efficiency Performance

• AC/AC Efficiency up to 93.5%

• DC/AC Efficiency up to 91.5%

• Input Power Factor ≥ 0.99

• Low Total Harmonic Distortion (THDV <2% linear load)

  Flexible Battery Options

  Standard Models (Internal Battery)

• 1K: 2 × 12V 7Ah/9Ah

• 2K: 4 × 12V 7Ah/9Ah

• 3K: 6 × 12V 7Ah/9Ah

• Backup Time: >6 minutes @ half load

• Long Backup Models (External Battery)

• 36VDC (1KL)

• 72VDC (2KL / 3KL)

• Expandable external battery banks

• Charging to 90% in 5 hours

Intelligent LCD Display Panel

Real-time monitoring of:

• Input Voltage & Frequency

• Output Voltage & Frequency

• Battery Voltage & Capacity

• Load Percentage

• Working Mode

• Fault Codes & Warnings

Includes:

• Battery self-test

• Buzzer mute function

• Parameter configuration

Applications :

• Servers

• Data-center critical network devices

• Sensitive electronic equipment

• Telecom

• Bank

• Hospital

• Bureau

• Traffic

• Public security

• ATM

Specifications

Advanced Configurable Settings

Adjustable via LCD:

• Output Voltage (208V / 220V / 230V / 240V)

• Output Frequency (50Hz / 60Hz / Auto)

• ECO Mode (Energy Saving)

• Bypass Enable/Disable

• EPO (Emergency Power Off)

• ROO (Remote On/Off)

• Communication Baud Rate

Multiple Working Modes

• Normal (Line) Mode

• Battery Mode

• Bypass Mode

• ECO Mode

• CVCF Mode (Constant Voltage Constant Frequency)

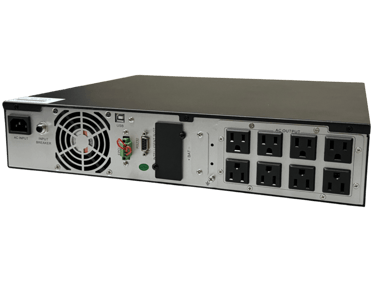

Communication & Monitoring Options

Standard:

• RS232

• USB

• EPO/ROO Interface

• Intelligent Card Slot

Optional:

• SNMP Card

• MODBUS Card

• Relay Card

Allows integration into:

• Network monitoring systems

• Remote management platforms

• Data center infrastructure

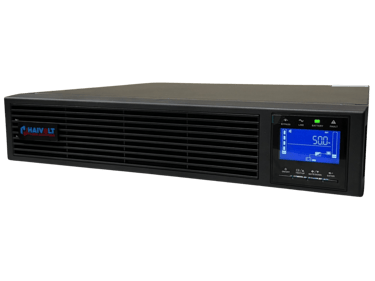

Rack & Tower Convertible Design

• 2U Rack-mount (19” compatible)

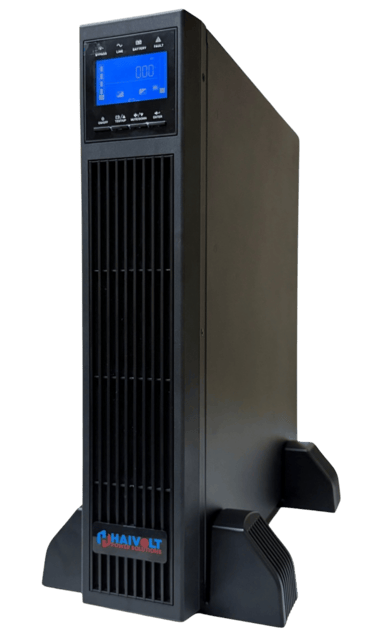

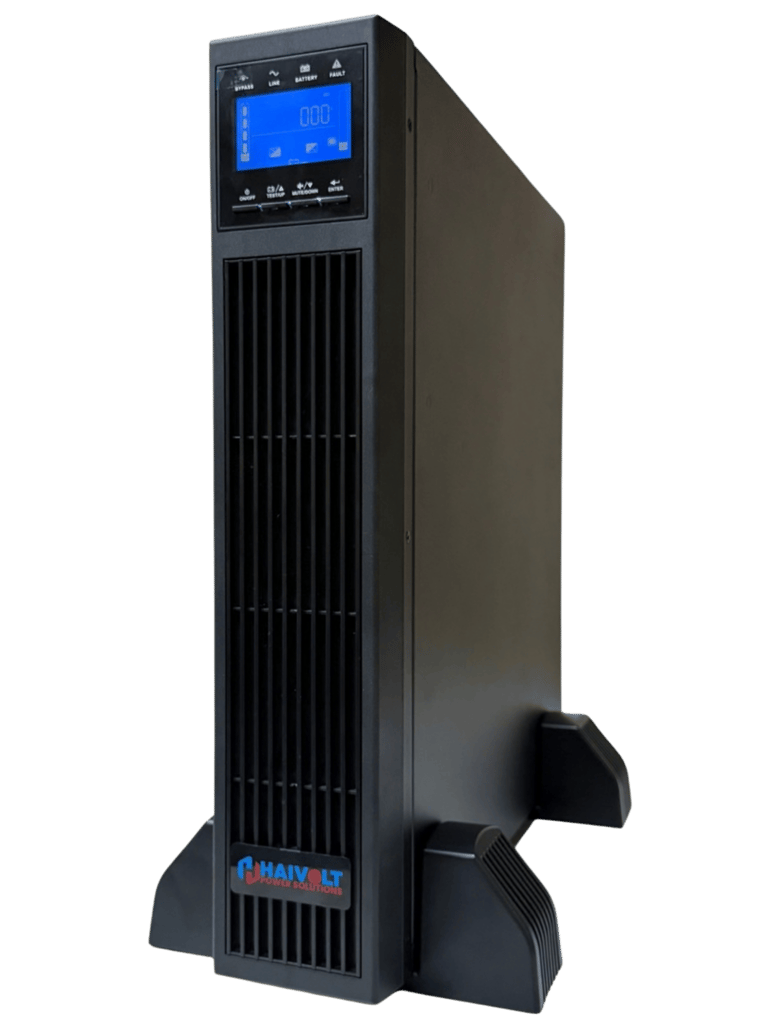

• Tower upright installation

• Space-saving compact structure

Comprehensive Protection Features

• Overload protection

• Short circuit protection

• Over-temperature protection

• DC BUS over/under voltage protection

• Battery low & battery disconnect alarm

• Input rectifier protection

• Charger failure detection

Low Noise Operation

• <55dB @ 1 meter

• Suitable for office and server room environments

Wide Operating Environment

• Temperature: -10°C to +40°C

• Humidity: 0%–97% (non-condensing)

• Altitude: Up to 3000m (with derating above 1000m)

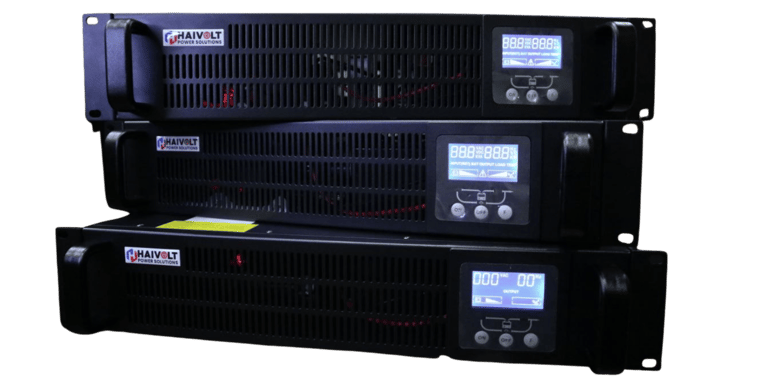

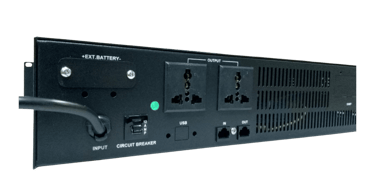

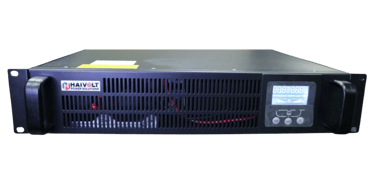

Rack Mount Online UPS

Highlight Features

• Rack Mount Series

• LCD Display

• Active Input Power Factor Correction (PFC), UPS can correct the input power factor. Under full load, the input power factor can reach over 0.95 so that the electric environment of the users will not be polluted

• Adaptive Load Management

• It adopts standard frame structure design. The structure is compact

• Sine wave output no matters in AC mode or battery mode can provide sine wave power source with low distortion. It provides the best power source guarantee for the load equipments for users

• Zero delay : when the utility power is cut off or recover, there is absolutely no time between the transfer of AC mode and battery mode. It effectively ensures the reliability of load operation

• Input null line and fire detecting function : it can detect if the null line and fire wire are wrongly connected. It avoids wrong connection of null line and fire wire of UPS AC power input

• It has voltage breakthrough protection and strong anti-interference function

Applications :

• Servers

• Data-center critical network devices

• Sensitive electronic equipment

• Telecom

• Bank

• Hospital

• Bureau

• Traffic

• Public security

• ATM

Specifications
